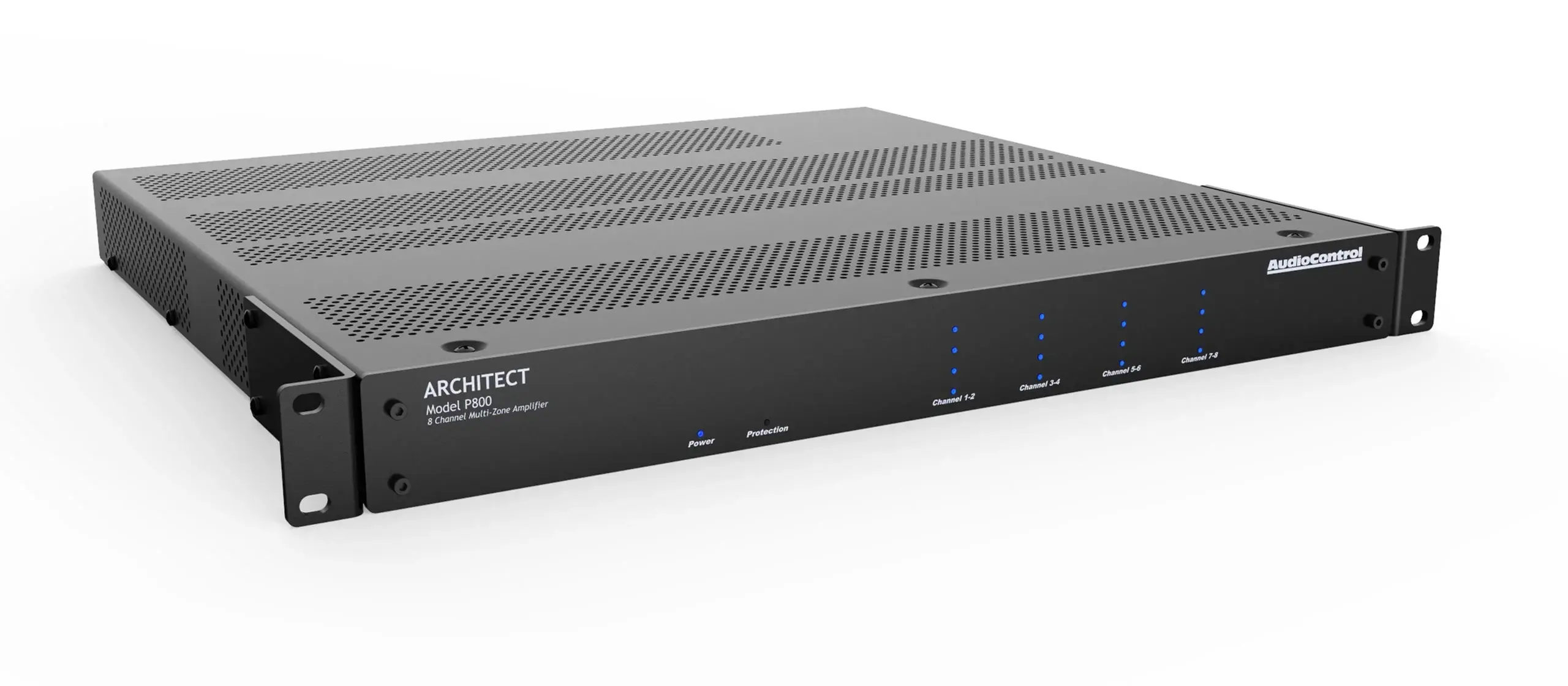

Architect P800 8-Channel High-Power Multi-Zone Amplifier
  • 8 channels, up to 4 Zones
  • 100 W at 8 Ohms, 200 W at 4 Ohms
  • 4 Bridgeable Zone Outputs
  • All Inputs Selectable for Local Input or Group BUS

Architect P800 8-Channel High-Power Multi-Zone Amplifier

SKU: ACP-AZ-P800
$2,199.00Price
Excluding Sales Tax
Quantity
    • 8 Channels of High Power and AudioControl Performance
    • 100 watts per Channel at 8 Ohms (All Channels Driven)
    • 200 watts per Channel at 4 Ohms (All Channels Driven)
    • Bridgeable as an 4 channel amplifier at 400 watts
    • Low Standby Current Draw of Less Than 1 Watt
    • Compact Design Fits into 1 Rack Space
    • LightDriveTM Anti-Clipping Protection Circuitry
    • 2 x Input Buses (Digital and Analog)
    • Local Zone Input Trigger
    • 12v Trigger Input and Output
    • Signal-Sensing On All Channels
    • Input Busing and Level Controls
    • Mono-switch for Improved Bridging
    • Beefy Rack Mount Brackets Included
    • Five Year AudioControl Warranty
  • INPUTS
    Inputs: 4 Stereo Local Analog Inputs, 1 Stereo Bus Coaxial Digital Input, 1 Stereo Bus Analog Input
    Input Sensitivity: Variable 0 to Vrms
    Analog Input Sensitivity: 1 Vrms for full output; level at maximum    		 AC POWER REQUIREMENTS
    Standby: 0.8 W
    Idle (main power on, all channels off): 35 W
    All channels active: 60 W
    All channels 1/8th rated power: 180 W
    Full power (20 A residential service limited): 1036 W
    Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads
    OUTPUTS
    Amplifier Channels: 8
    1 Stereo Bus Analog Output
    Power Output (8 Ω): 100 W per channel
    Power Output (4 Ω): 200 W per channel
    Power Output (Bridged Mono): 400 W
    Minimum Speaker Load: 4 Ω    		 BTU/HR OUTPUT
    Standby: 2.7 BTU/hr
    Idle (main power on, all channels off): 120 BTU/hr
    All channels active: 192 BTU/hr
    All channels 1/8th rated power: 242 BTU/hr
    Full power (20 A residential service limited): 680 BTU/hr
    PERFORMANCE
    Damping Factor: >200
    Signal to Noise: >105 dB, (A-wtd, ref full output)
    Crosstalk: >80 dB @ 1kHz
    Gain: 30 dB
    Analog Input Sensitivity: 1 Vrms for full output, level at maximum
    DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth    		 WEIGHT & DIMENSIONS
    Dimensions: 19″ W (w/rack ears) 17” W (w/o rack ears) x 15.8” D x 1.75″ H (1 U)
    Weight: 15.0 lbs. (6.8 kg)
    CONTROL
    Remote Power Trigger: +12 VDC or Dry Contact Closure, 2 x 1/8″ TS mono in/out    		 IN THE BOX
    Architect Model P800, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty
